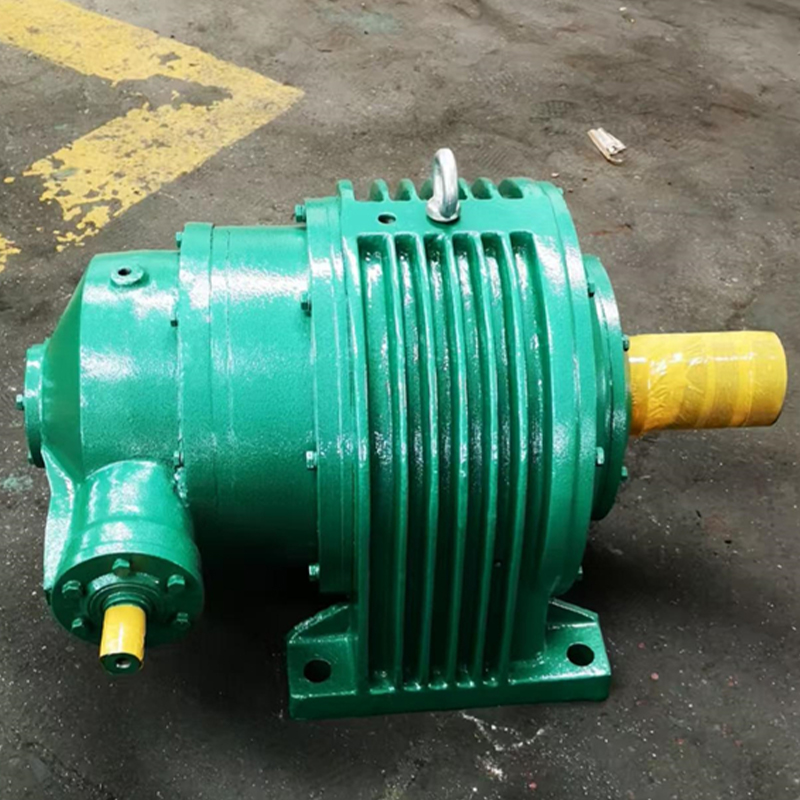

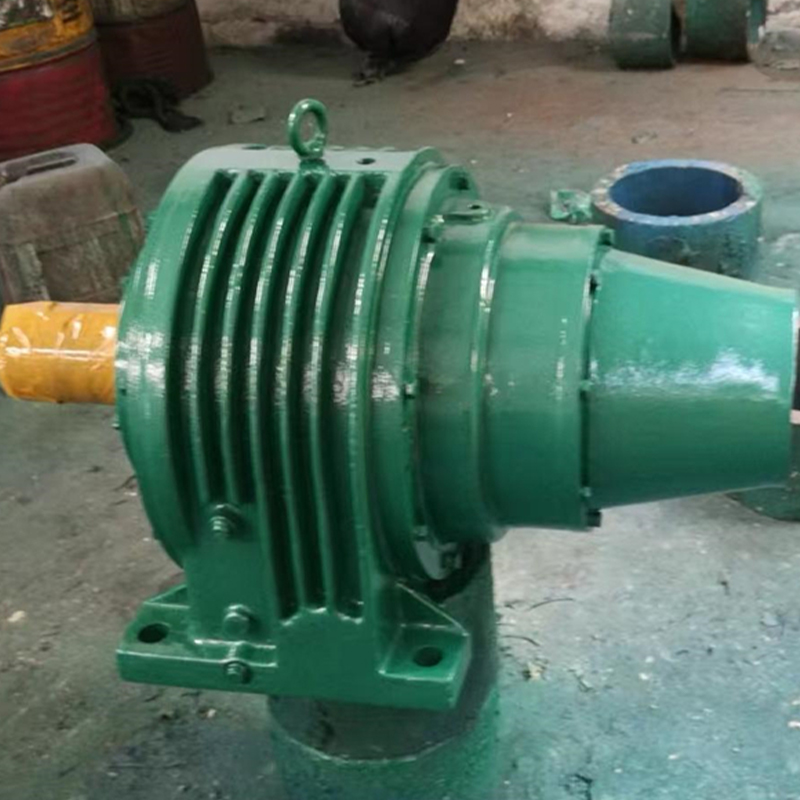

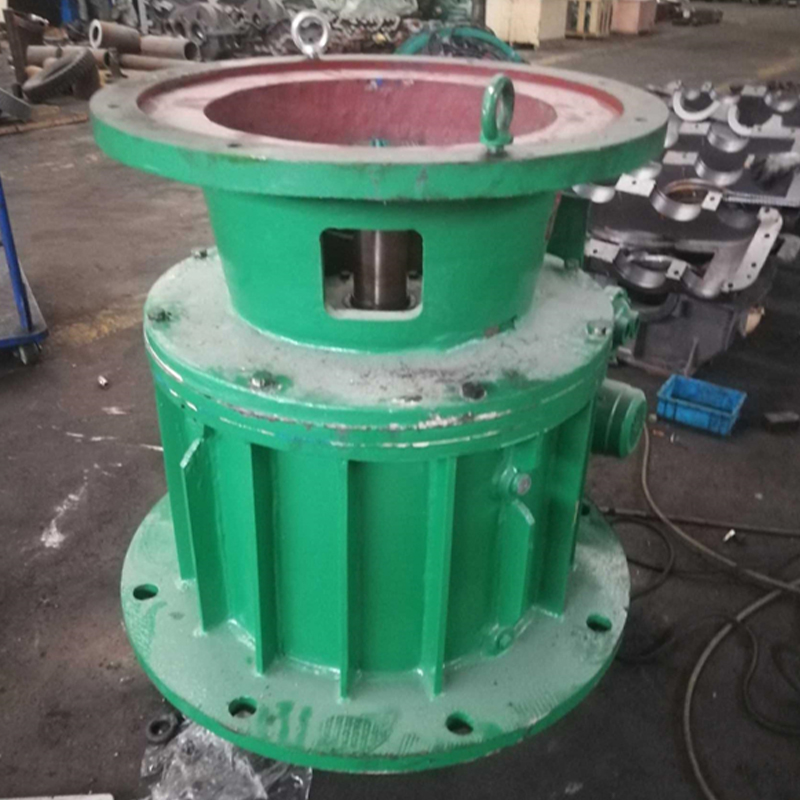

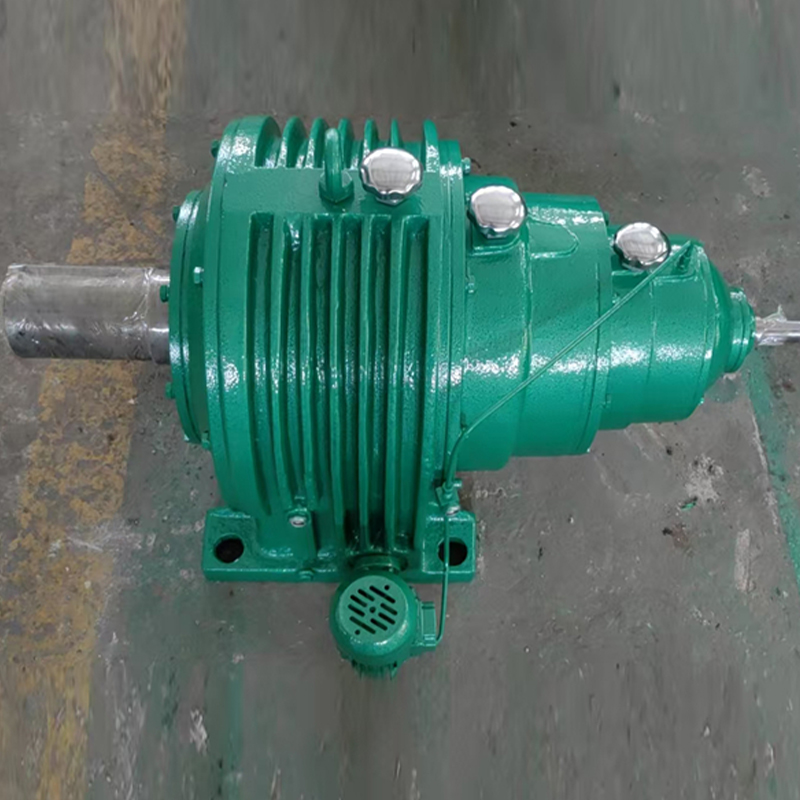

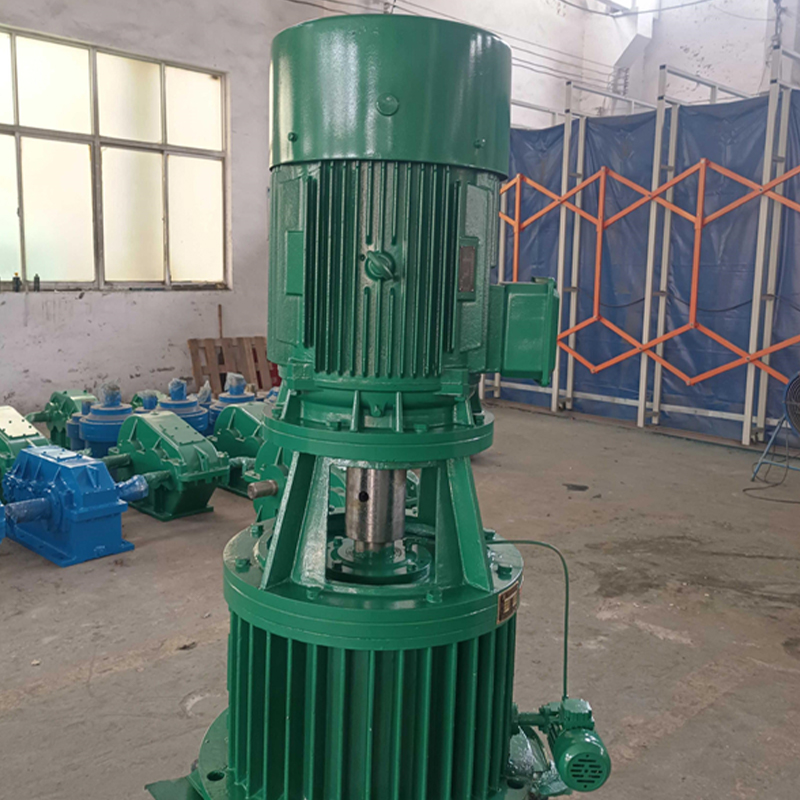

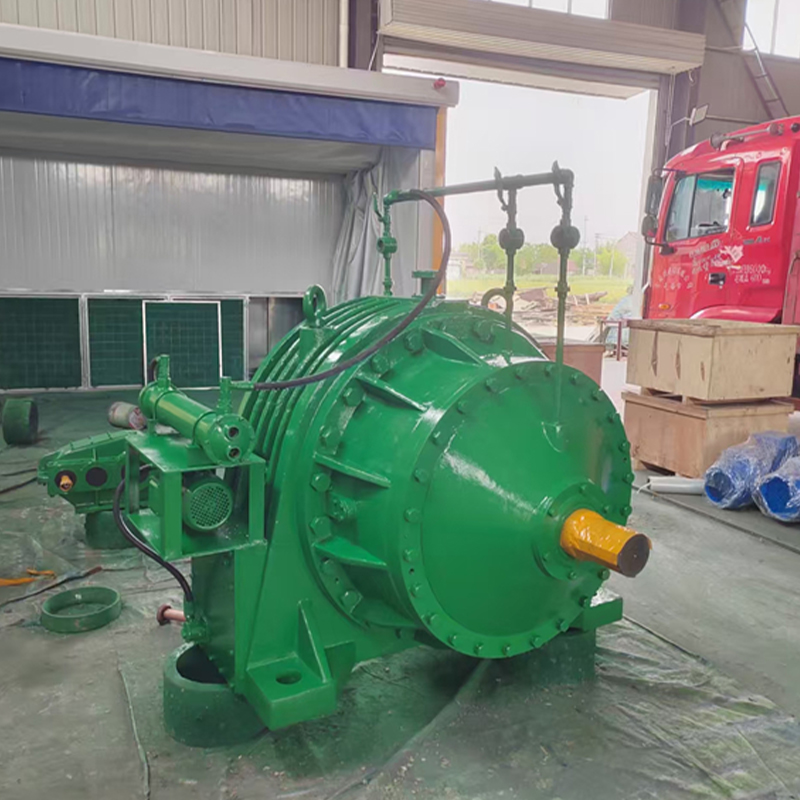

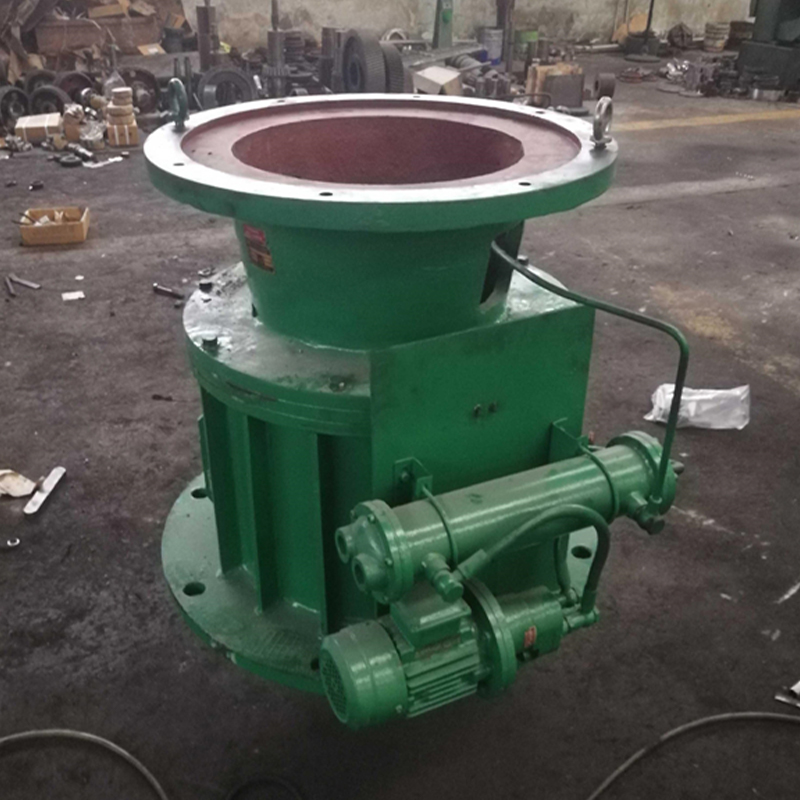

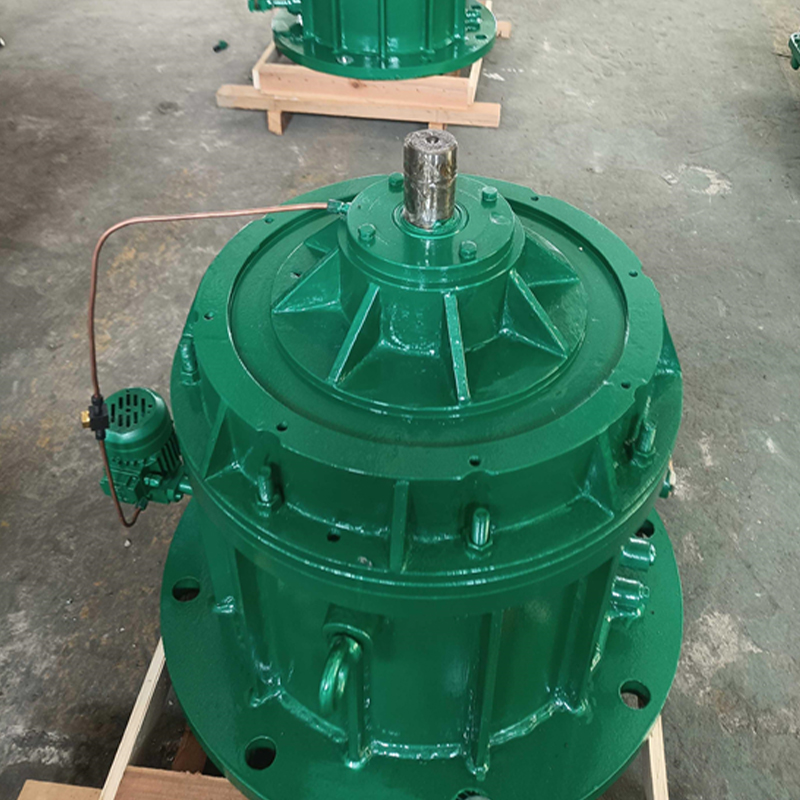

Planetary Gear Reducers

A planetary gear reducer is a high-efficiency speed reduction device based on the principle of planetary gear transmission. Its core structure consists of a sun gear, planet gears, an internal gear ring, and a planetary gear set, forming a coaxial nested power-sharing system. Compared to ordinary cylindrical gear reducers or worm gear reducers, planetary gear reducers, through a multi-tooth simultaneous meshing load-sharing design, achieve higher torque density and transmission efficiency (single-stage efficiency up to 97%-98%) within the same volume, while significantly reducing weight and space occupation (volume reduced by 30%-50%, weight reduced by 20%-40%). It has a wide transmission ratio range (typically 3-12.5 for a single stage, and up to thousands for multi-stage combinations) and supports coaxial input and output, simplifying the mechanical structure layout. Furthermore, planetary gear reducers feature high rigidity, low backlash (precision models can be controlled within 1 arcminute), and strong impact resistance, making them suitable for high-precision positioning, heavy-duty conditions, and space-constrained scenarios, such as industrial robots, wind power equipment, and construction machinery.

Inquiry

Product Description

Product Advantages
1. Compact Structure and High Torque Density: Utilizing a coaxial planetary gear system, power is distributed and transmitted through multiple planetary gears. This results in a torque capacity 1.5-3 times higher than ordinary reducers of the same size, making it particularly suitable for applications with limited installation space.
2. High Transmission Efficiency and Energy Saving: The multi-tooth meshing design reduces single-tooth load, resulting in low friction loss and a single-stage efficiency exceeding 97%. Long-term operation significantly reduces energy consumption, making it suitable for high-frequency or continuous operation scenarios.
3. High Precision and Low Backlash: Gears are processed through carburizing, quenching, and grinding, controlling backlash to within 5 arc minutes. This ensures precise motion control, meeting the high-precision positioning requirements of servo motors, machine tool feed systems, and other applications.
4. Excellent Load Capacity and Reliability: Load is evenly distributed across multiple planetary gears, providing strong impact resistance. The alloy steel gears and reinforced housing design are suitable for heavy-duty applications in mining and metallurgy, offering a long service life and short maintenance cycles. 5. Wide Technical Adaptability: Transmission ratios range from 3-512 (expandable to over 1000 kW), input power range from 1kW to 3000kW, supports ambient temperatures from -40℃ to 45℃, and can be customized with flange or foot mounting options.
