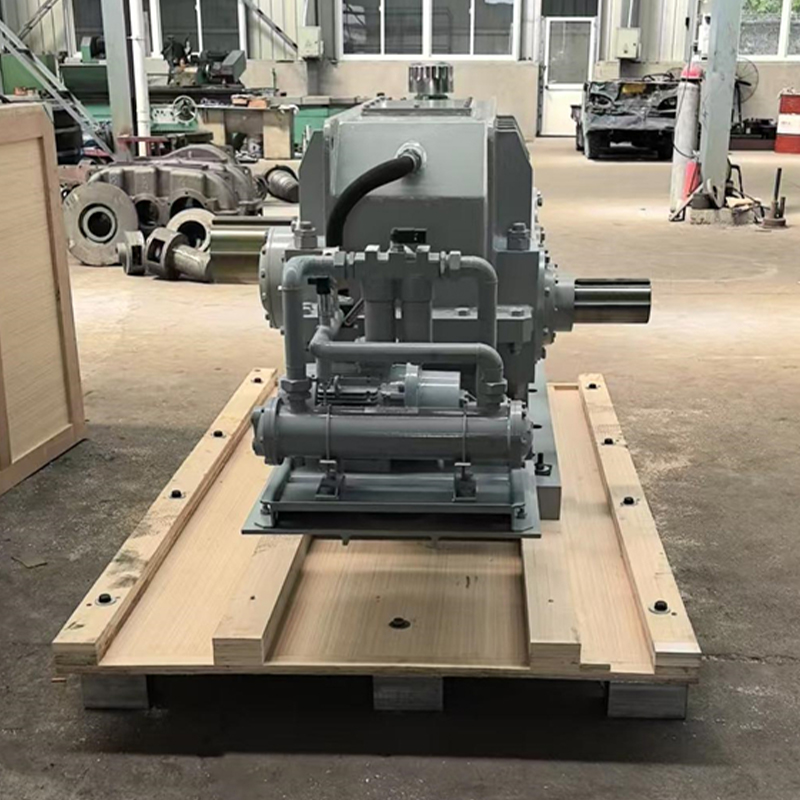

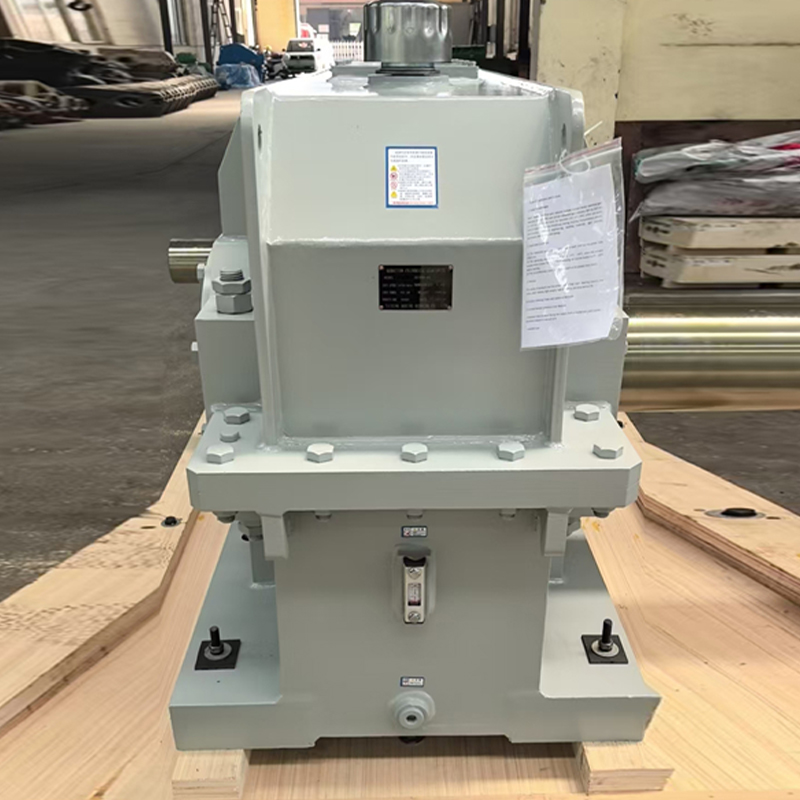

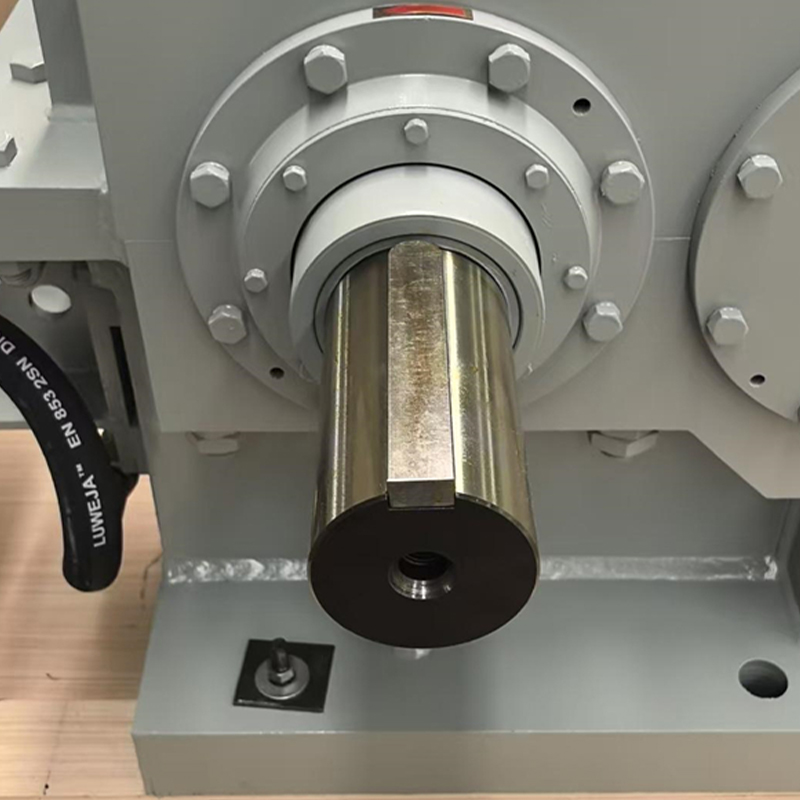

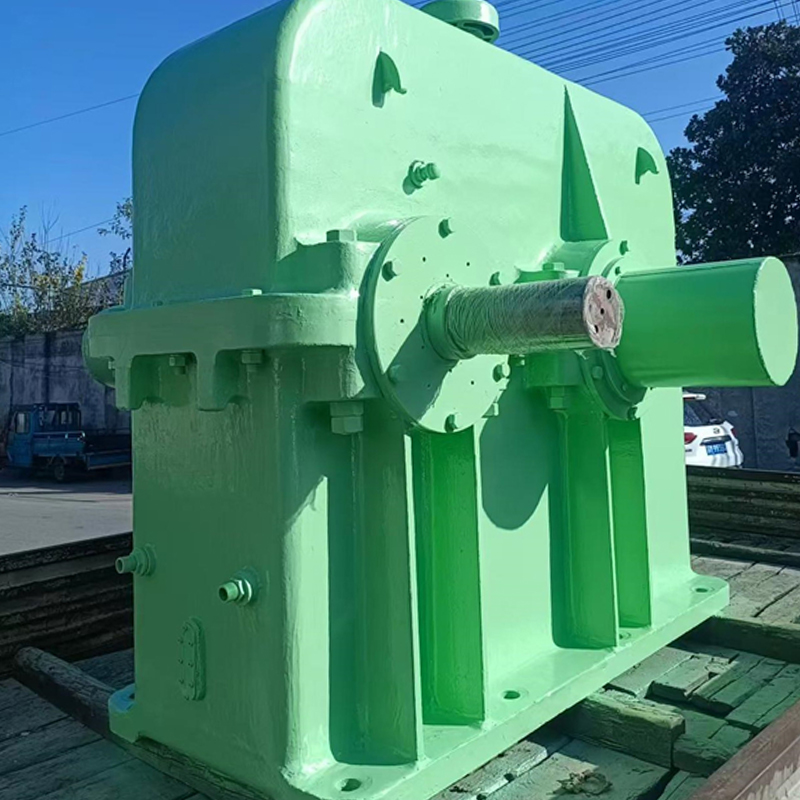

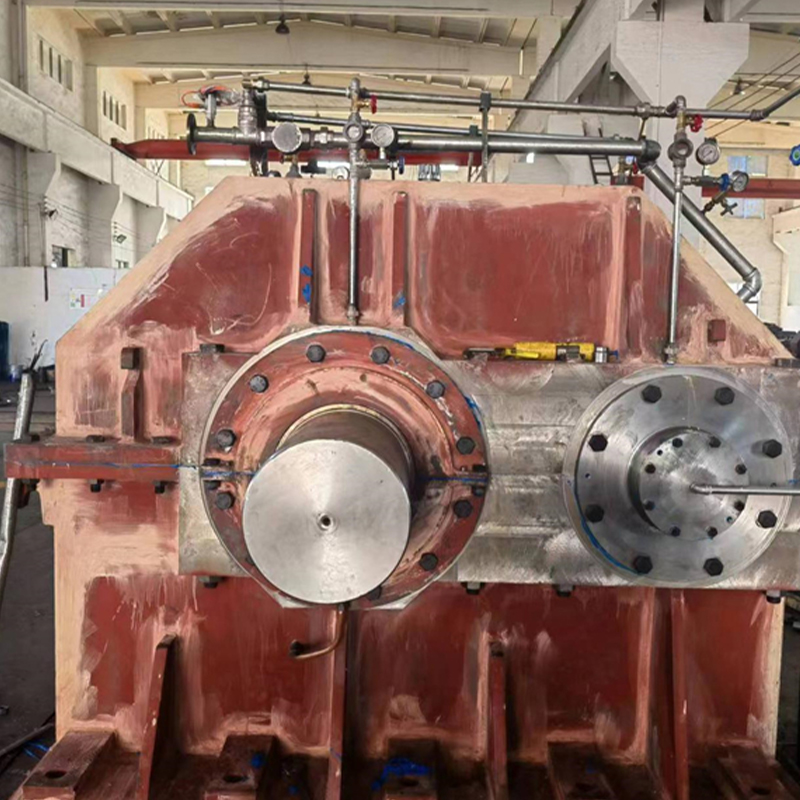

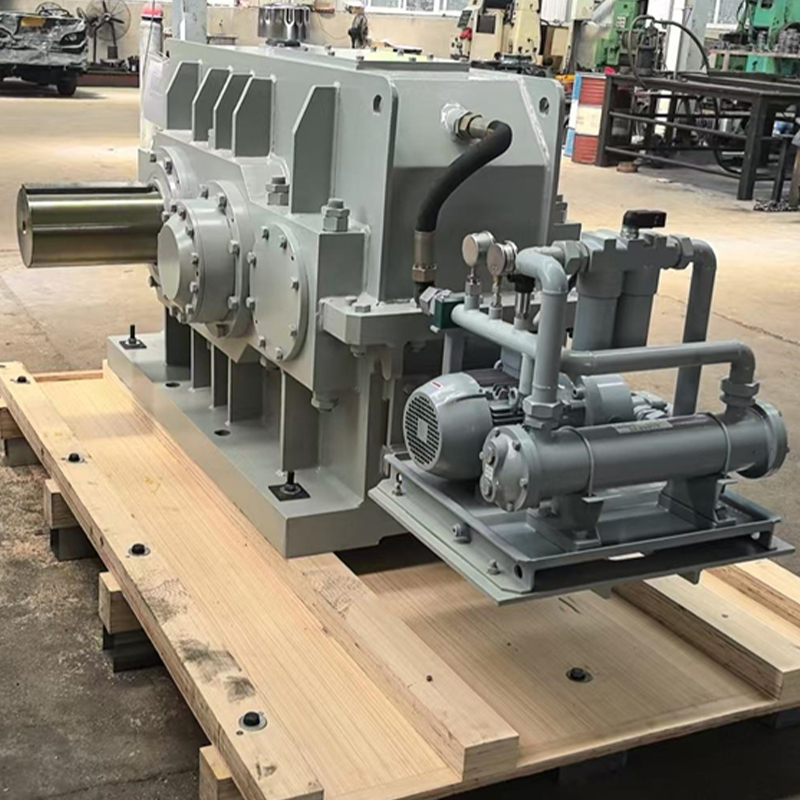

Ball Mill Reducer

The Ball Mill Reducer is a heavy-duty transmission component specifically designed for the main drive system of ball mills, focusing on the core operating conditions of ball mills: low-speed heavy load, 24-hour continuous operation, high vibration, and high dust levels. Compared to general-purpose hardened gear reducers in the same category, it adopts a specialized design of "vibration-resistant reinforcement + axial force balance," increasing gear load margin by more than 35%, maintaining a stable transmission efficiency of 92%-96%, and integrating a wear-resistant, dustproof, and long-lasting lubrication system. This solves the pain points of general-purpose reducers in ball mill conditions, such as tooth surface wear, seal failure, and frequent maintenance due to vibration. It is suitable for the power transmission needs of ball mills with diameters from Φ1.8m to 5.0m.

Inquiry

Product Description

Key Features:
1. Vibration-resistant meshing design: The gears feature modified tooth profiles and tooth tip reinforcement, combined with a load-sharing mechanism, reducing meshing impact under high vibration conditions and increasing fatigue life by 50%.
2. Axial force balance structure: The built-in combination of double-row self-aligning roller bearings and axial thrust bearings effectively counteracts the axial force of the ball mill drum, ensuring transmission stability.
3. Wear-resistant and dustproof seal: A triple labyrinth seal combined with a wear-resistant bushing, along with a negative pressure dustproof design, effectively prevents grinding dust intrusion, extending the seal life to over 8000 hours.
4. Rigid reinforced housing: High-strength ductile iron integral casting, uniform wall thickness, and cross-reinforcing ribs provide excellent vibration and deformation resistance, with operating noise ≤82 decibels.
5. Overload buffer protection: Built-in torque limiter mounting interface allows for linkage with the control system to achieve overload buffering, preventing damage to transmission components caused by grinding media jamming.
