Home / Products / Cylindrical Gear Reducers / Conveyor Reducer

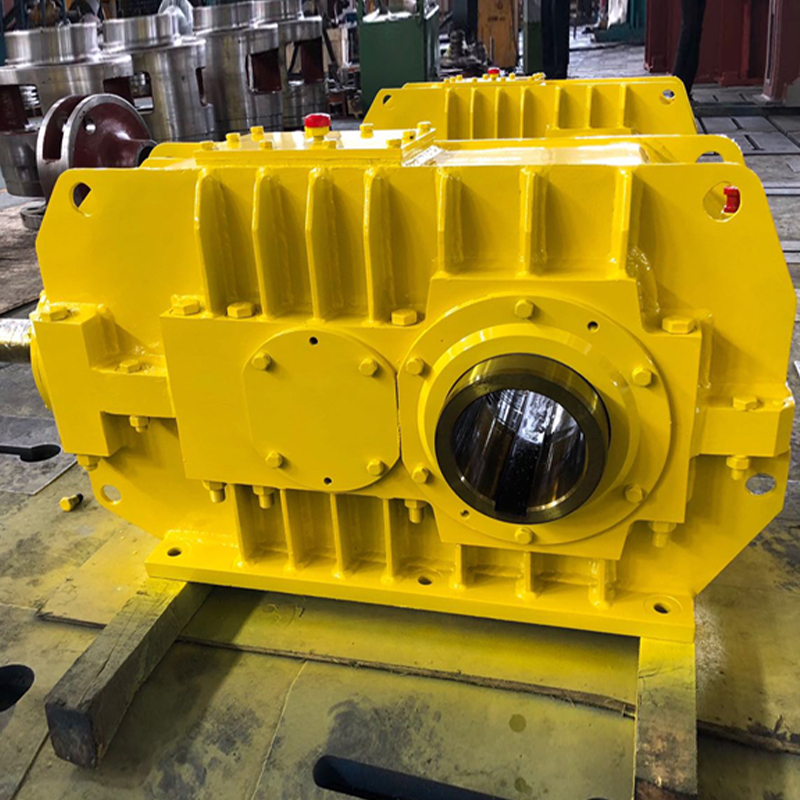

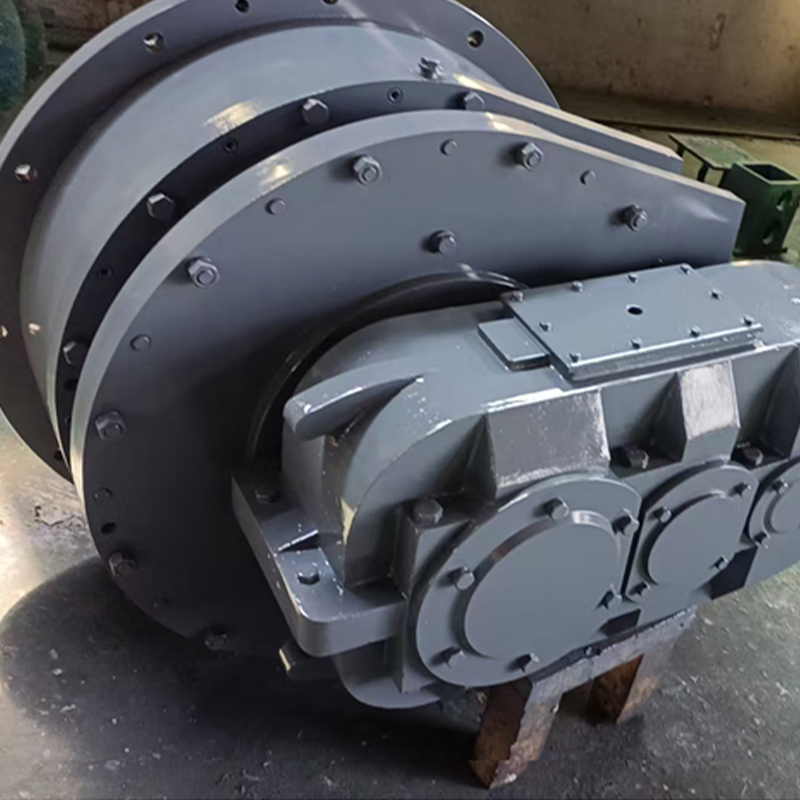

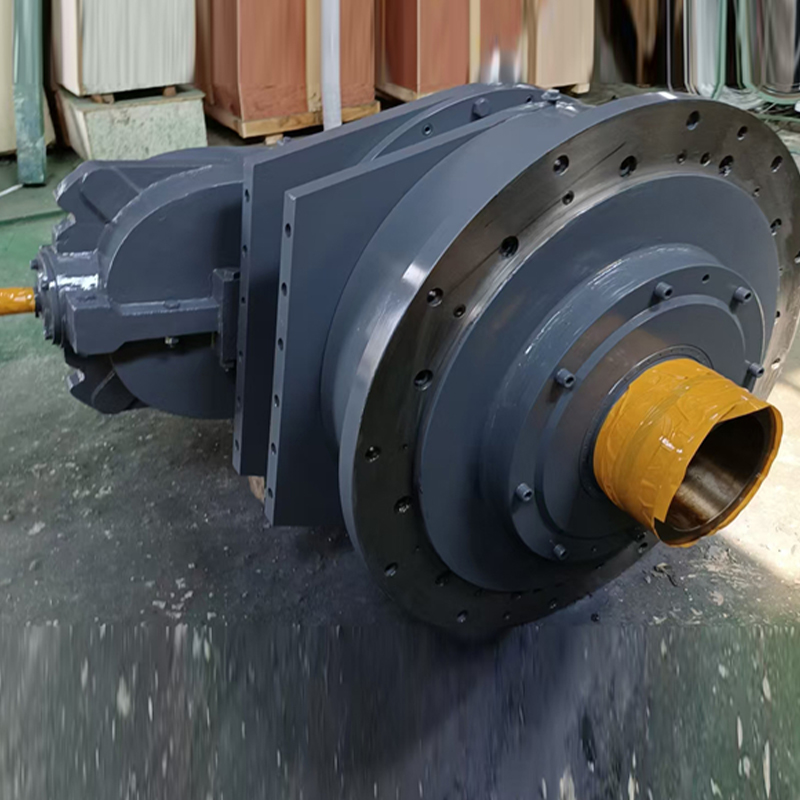

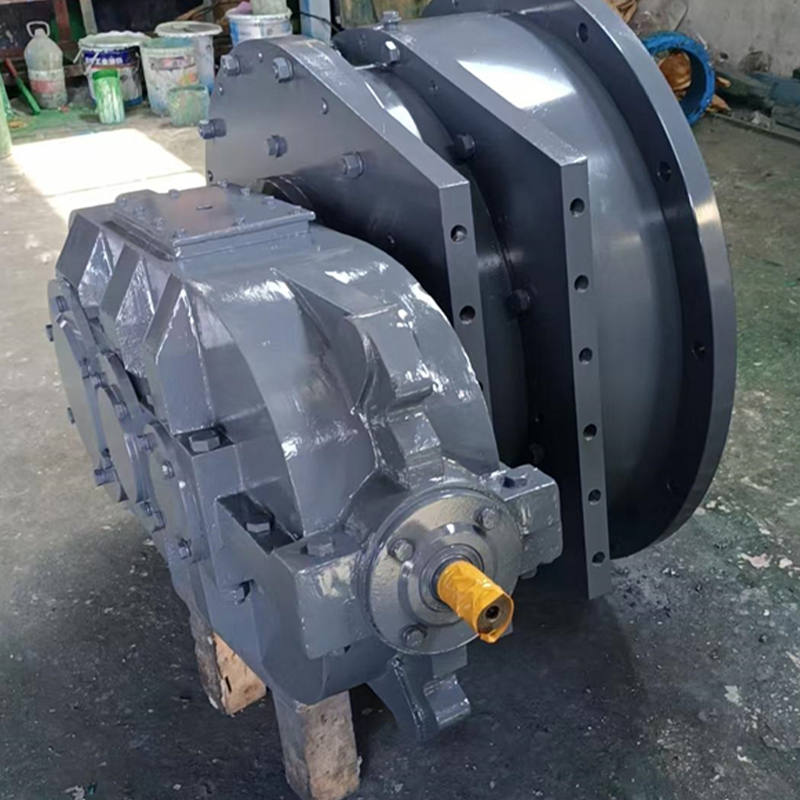

Conveyor Reducer

The Conveyor Reducer is the core transmission component of a belt conveyor system. Its main function is to convert the high speed of the electric motor into the low speed, high torque power required by the conveyor drums, ensuring smooth and efficient material transport. Compared to general-purpose industrial reducers, this product is specifically optimized for continuous conveyor operation, load variations, and harsh working conditions (such as high dust levels, large temperature differences, and impact vibration). Its core structure often employs hardened gear teeth (e.g., alloy steel carburized and quenched, achieving a tooth surface hardness of HRC54-62), combined with a high-rigidity housing (cast iron or cast steel), achieving a wide torque range of 150–24,830 N·m. Through precise reduction ratio control (typically 5–31.5, expandable to 15,000), the Conveyor Reducer effectively reduces motor load impact and extends equipment life while ensuring a transmission efficiency of over 95%. Its compact design (such as planetary gear splitting or shaft-mounted structures) is suitable for space-constrained environments such as underground mines, while optimized sealing technology and lubrication systems (such as IP65 protection rating, oil sump or circulating lubrication) ensure long-term stable operation in high-temperature and dusty environments.

Inquiry

Product Description

Core Advantages:
High Torque Density and Compact Design: Utilizing planetary gear or spiral bevel gear structures, it provides 30%-50% higher torque output than standard reducers within the same volume through multi-tooth load splitting, making it particularly suitable for confined spaces such as mines and tunnels.
Precise Speed ​​Ratio Control and High-Efficiency Transmission: Optimized gear meshing and grinding processes (precision up to grade 6) achieve a transmission efficiency exceeding 95%, with reduction ratios covering 5–15000, precisely matching conveyor speed control requirements and reducing energy consumption by 10%-20%.
Strong Environmental Adaptability: The housing is made of cast iron/cast steel, and the gears undergo carburizing and quenching treatment (hardness HRC54-62), achieving an IP65 protection rating and withstanding temperature ranges of -40℃–45℃ and high-dust conditions.
Low maintenance and high reliability: Modular design supports quick assembly and disassembly; sealing system prevents oil and dust leaks; maintenance cycle extended to 6,000–8,000 hours; failure rate reduced by 5% over lifespan.

Product Features
Diverse Structures: Includes planetary gears, worm gears, shaft-mounted types, etc., supporting horizontal, vertical, and flange installation.
Load Adaptability: Torque matched to the characteristics of the conveyed material (e.g., ore, coal, grain) to avoid overload or energy waste.
Integrated Safety Functions: Optional backstop (anti-slip) and explosion-proof configuration ensure the safety of inclined conveyors.
Intelligent Expandability: Compatible with variable frequency motors and sensors, enabling real-time speed monitoring and automated control.
