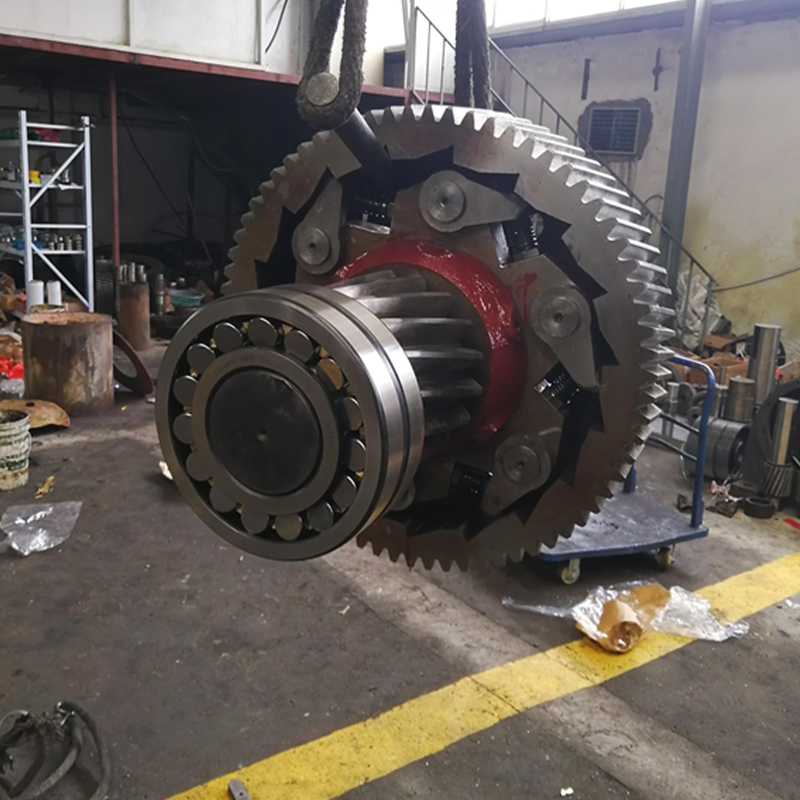

The Ratchet and Pawl Hard-Tooth Surface Reducer is a special speed reduction device combining a ratchet mechanism and hardened gear transmission. This product integrates unidirectional transmission functionality into the traditional hardened gear reducer, achieving precise unidirectional motion control through a ratchet and pawl mechanism. Compared to conventional reducers, the Ratchet and Pawl Hard-Tooth Surface Reducer features a reverse self-locking characteristic, automatically locking the output shaft to prevent reverse rotation when input power is interrupted. Its hardened gears undergo a carburizing and quenching process, achieving a tooth surface hardness of 58-62 HRC, ensuring transmission accuracy and durability under high load conditions. This unique design makes the product particularly suitable for lifting, hoisting, and conveying equipment requiring anti-reverse rotation and guaranteed positioning safety.
Inquiry
Product Description

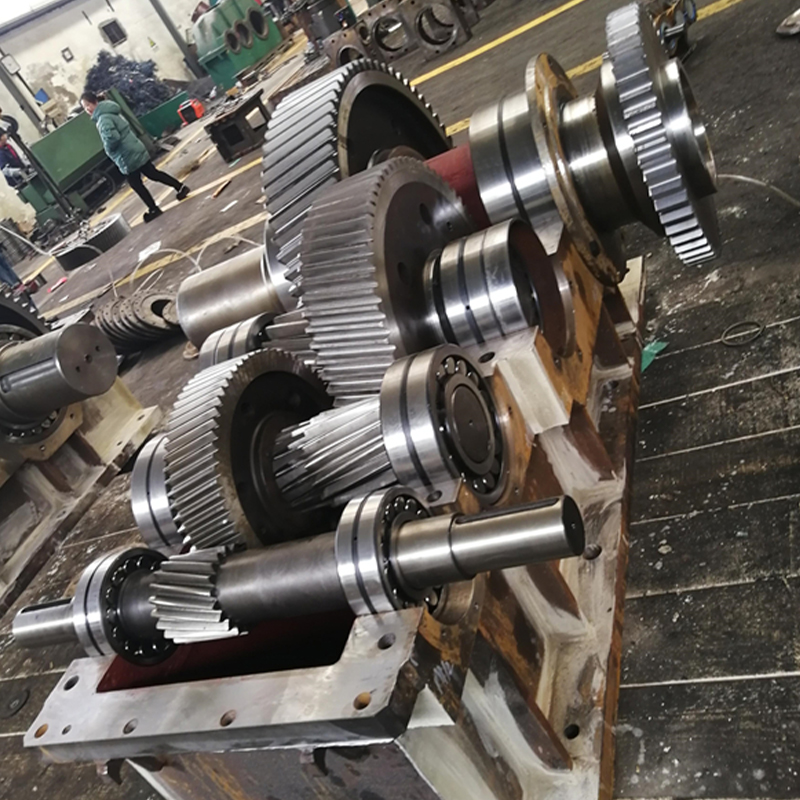

Structural Features:
The housing is integrally cast from high-strength cast iron with multiple internal reinforcing ribs.
The ratchet and output shaft are double-secured using a key connection and locating pins.
The pawl uses a spring-loaded design to ensure instant engagement response.
Equipped with a visible oil level indicator and magnetic drain plug for easy maintenance.
