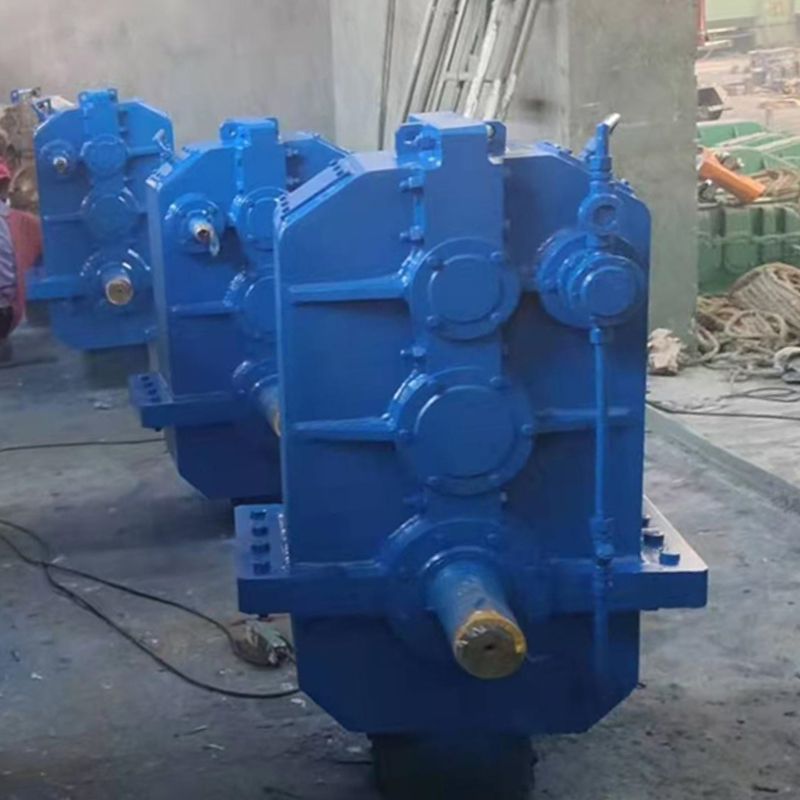

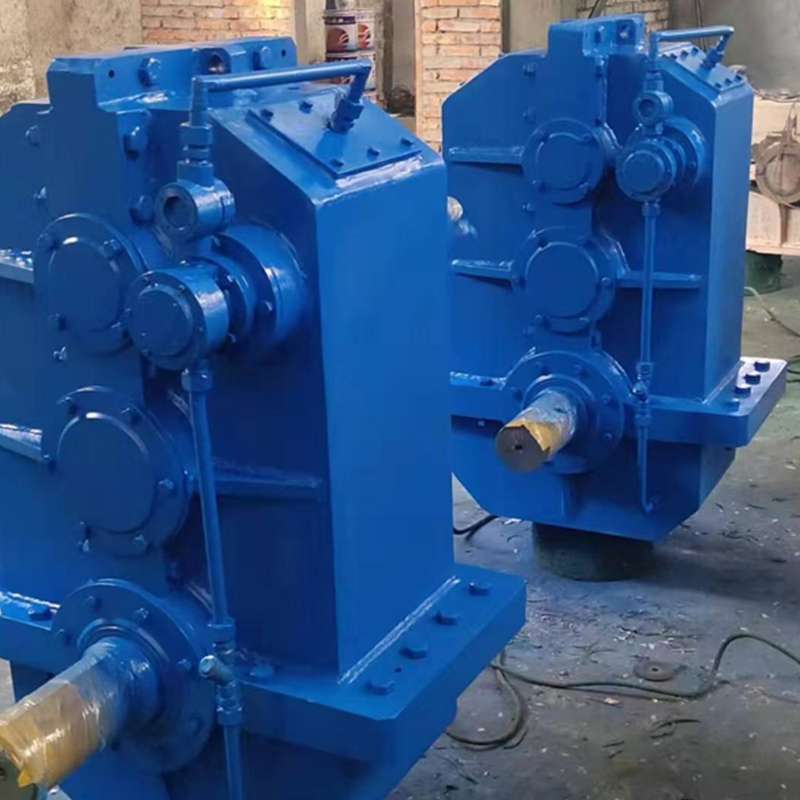

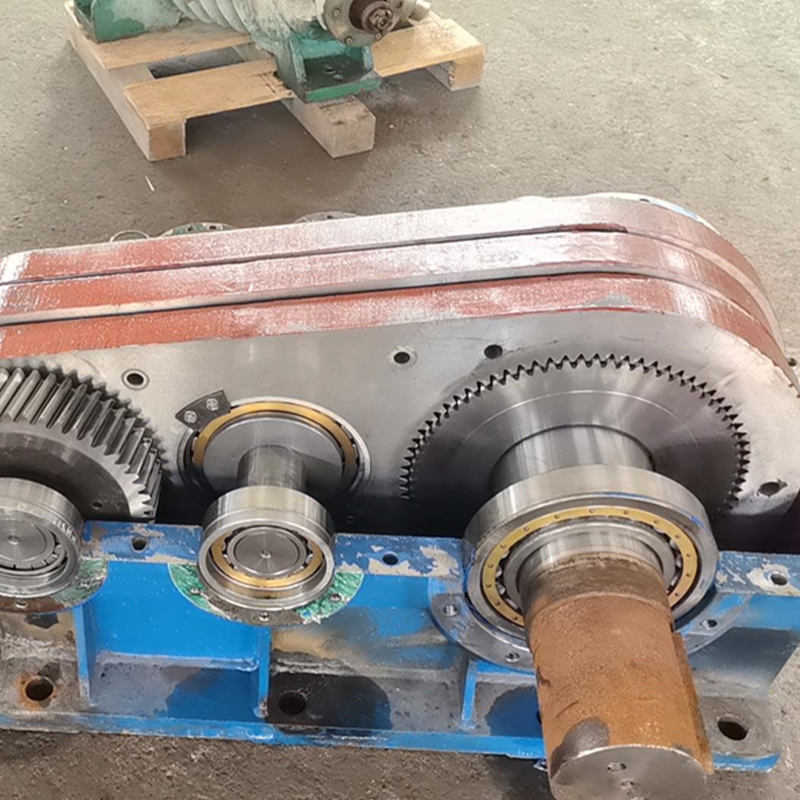

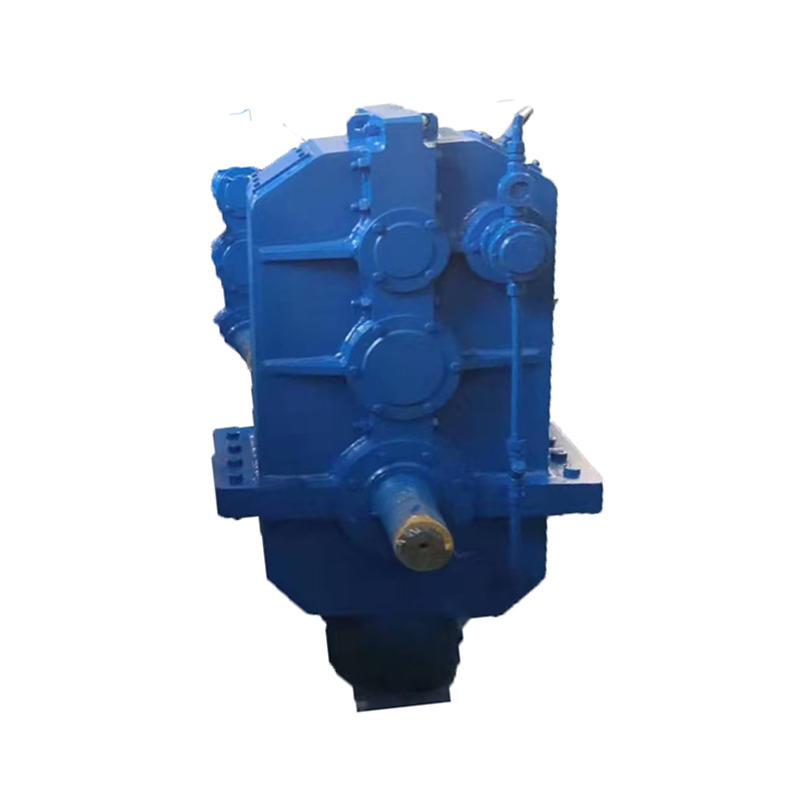

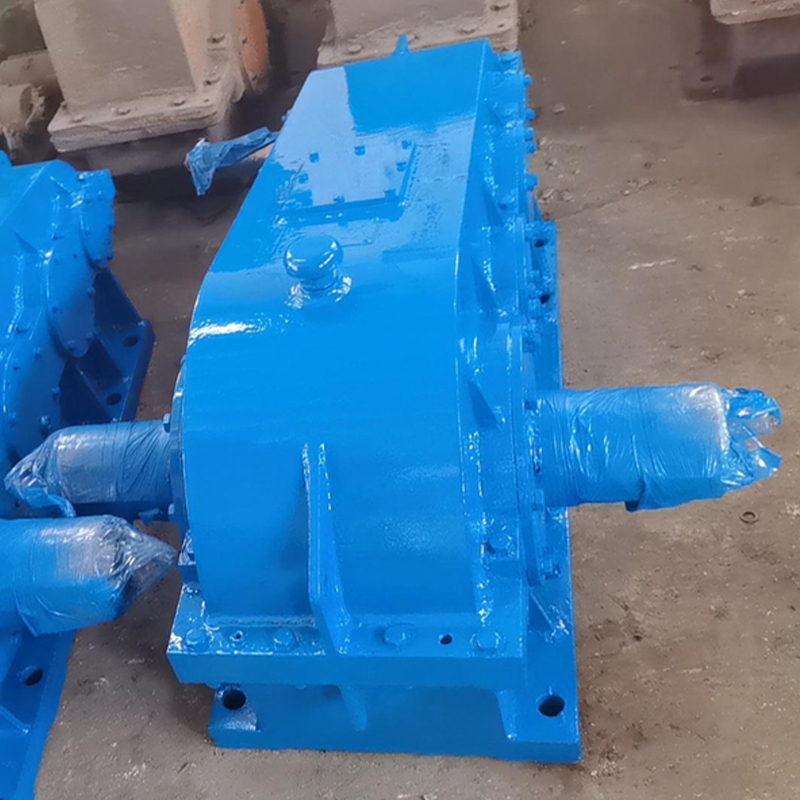

Ladle Turret Reducer

The Ladle Turret Reducer is a core transmission component of the ladle rotation device in a continuous casting production line, specifically designed for precise control of ladle rotation, positioning, and load bearing. Compared to general industrial reducers, the Ladle Turret Reducer is designed for extreme conditions, capable of withstanding loads exceeding 400 tons and maintaining stable operation in harsh environments with high temperatures and high dust levels. This product employs a special heat treatment process and sealing structure to ensure long-term reliability in steel smelting environments. The Ladle Turret Reducer features precise positioning accuracy and smooth start-stop characteristics, crucial for preventing molten steel sloshing and ensuring safety in continuous casting production. Its unique impact-resistant design effectively absorbs the mechanical stress generated during ladle lifting and rotation, significantly extending the equipment's service life.

Inquiry

Product Description

Key Features
Ultra-High Load Capacity: Utilizing a multi-support structure and reinforced gear design, it can withstand the combined weight of the ladle, molten steel, and refractory materials, with a maximum load capacity exceeding 400 tons.
Precise Positioning Control: Features precise transmission accuracy and minimal backlash, ensuring accurate alignment of the ladle with the tundish pouring position during rotation, with an error range controlled within ±1mm.
High Temperature Resistance Design: Equipped with a special heat insulation device and a high-temperature lubrication system, it can operate stably and continuously in ambient temperatures approaching 200°C.
Dual Safety Protection: Integrates both mechanical and electric braking systems to ensure safe locking of the ladle in the event of a power outage or equipment failure.
Low Maintenance Design: Employs a fully sealed structure and centralized lubrication system, effectively preventing metal dust intrusion and extending maintenance cycles and service life.
