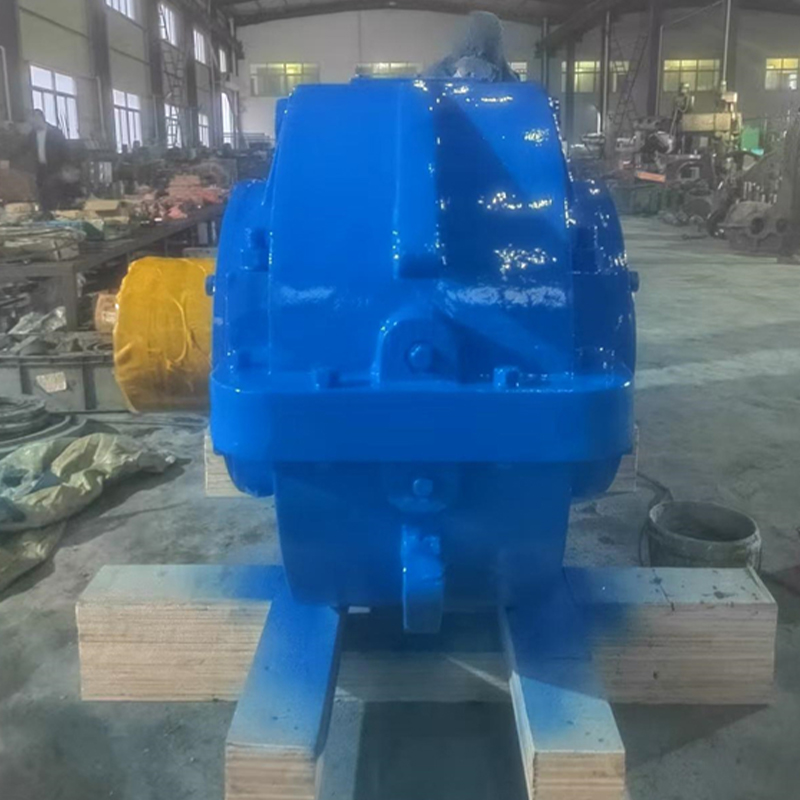

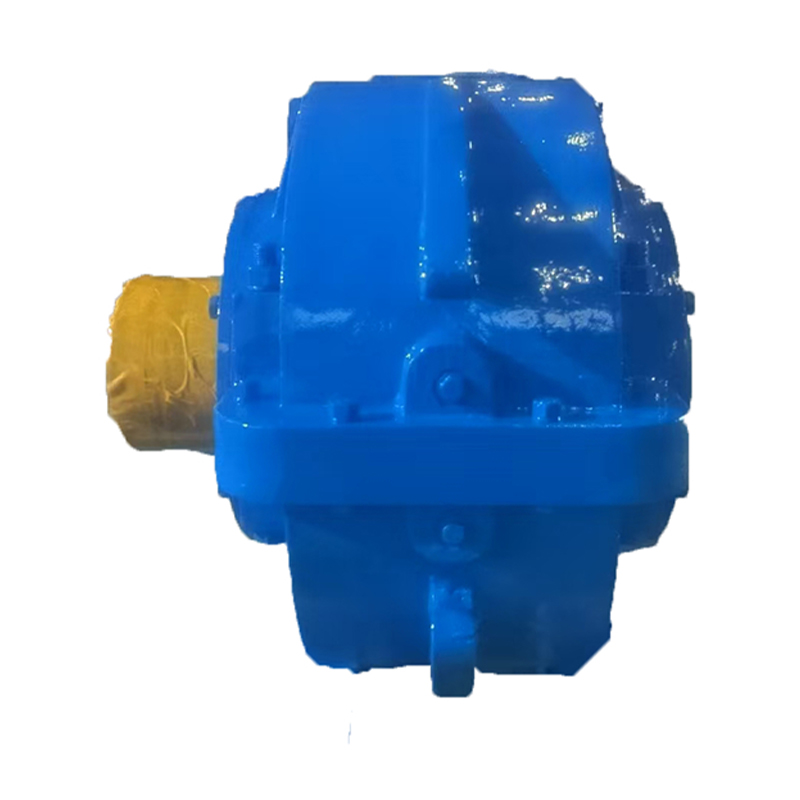

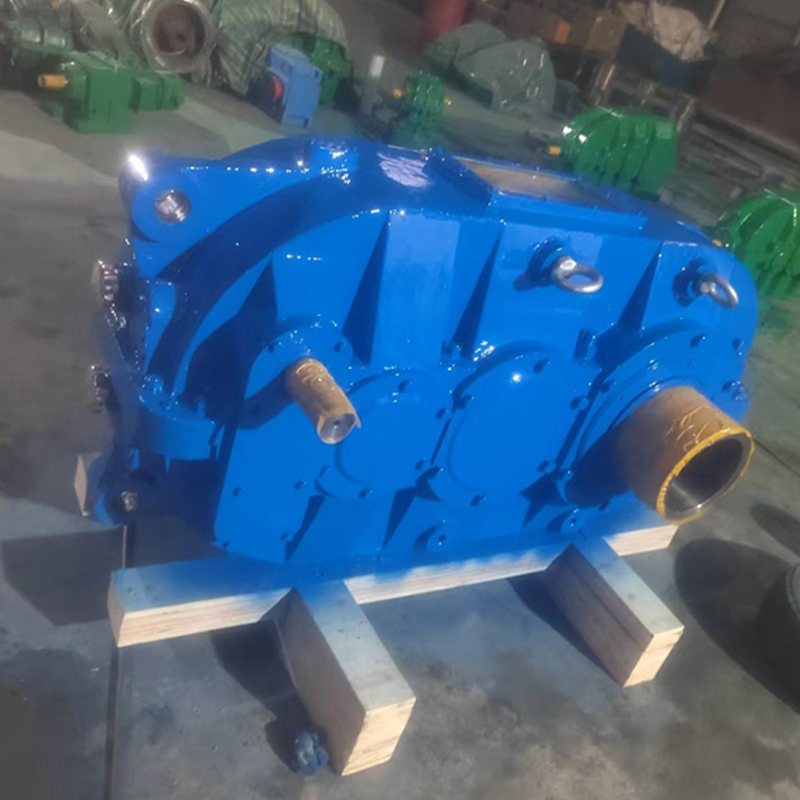

The Stacker Reclaimer Reducer is a specialized reducer designed specifically for the multi-mechanism transmission of stacker-reclaimers, focusing on the special working conditions of heavy-duty, frequent start-stop, high-impact, and dusty outdoor environments in bulk material handling. Compared to general-purpose transmission reducers in the same category, it adopts a "reinforced planetary gear train + hardened tooth surface integrated" structural design, with a transmission ratio covering 20-150 and a load margin more than 30% higher than ordinary reducers. It integrates an independent forced lubrication and labyrinthine multi-seal system, maintaining a stable transmission efficiency of 93%-97% even in a wide temperature range of -30℃ to 60℃. Through its modular output interface design, this product can simultaneously adapt to the three core mechanisms of stacker-reclaimers: pitch, slewing, and travel. This solves the problems of insufficient adaptability of ordinary reducers to the complex transmission requirements of stacker-reclaimers and susceptibility to tooth surface wear or seal failure due to impact loads.
Inquiry
Product Description
Key Configuration:
Transmission Structure: Utilizes a reinforced planetary gear system with an integrated hardened gear surface design. Gears undergo carburizing and quenching (58-62HRC) and precision grinding, with optimized load distribution through tooth surface modification.
Bearing Configuration: Self-aligning roller bearings are used in key components, with a rated dynamic load designed for a 100,000-hour service life.
Sealing Protection: Labyrinth seal + V-ring combination seal, achieving an IP66+ protection rating, effectively preventing dust and moisture corrosion.

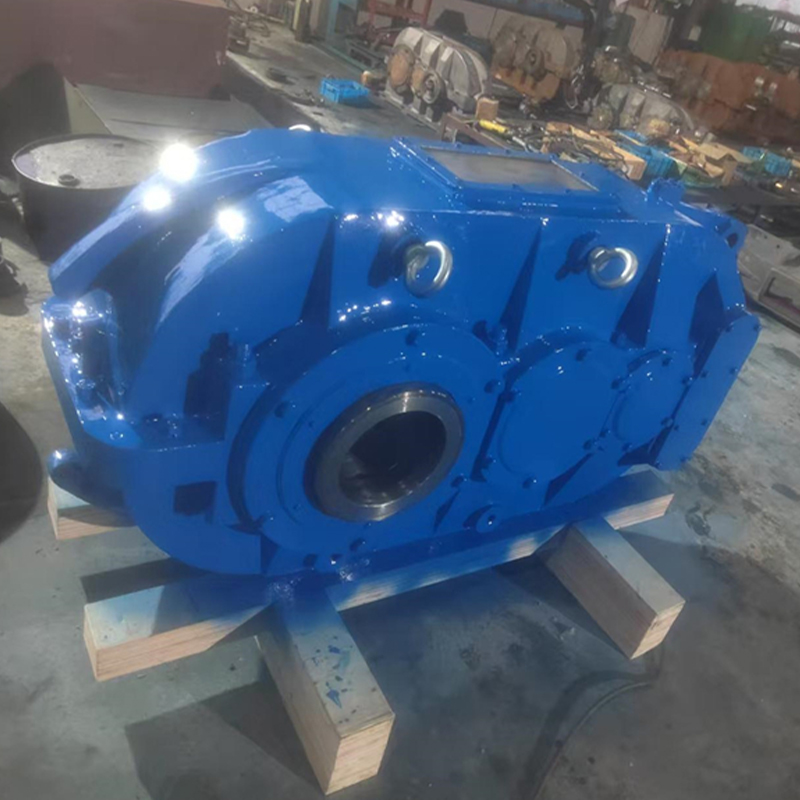

Adaptive Design: Modular output interface, supporting flange/hollow shaft (locking disc) installation; transmission ratios 20-150 are customizable.
Torque Coverage: Output torque 1000N・m-20000N・m, compatible with the three core mechanisms of stacker-reclaimers.
