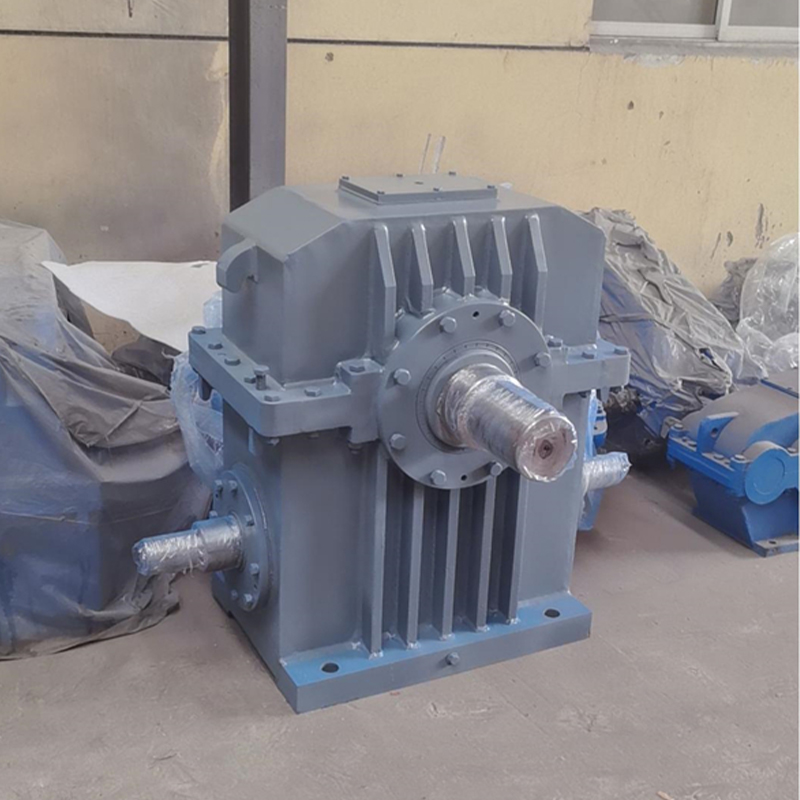

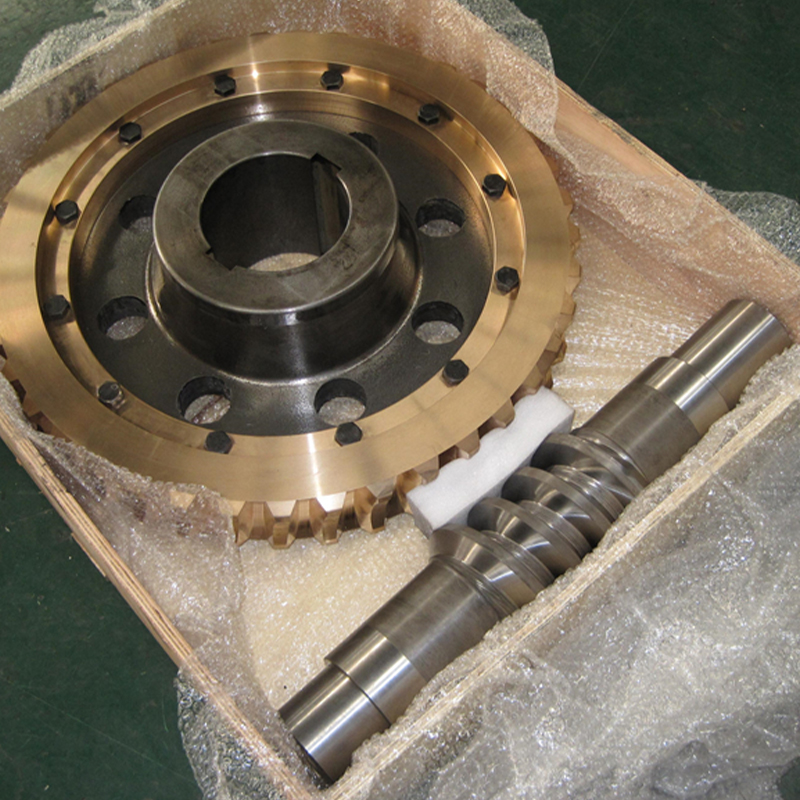

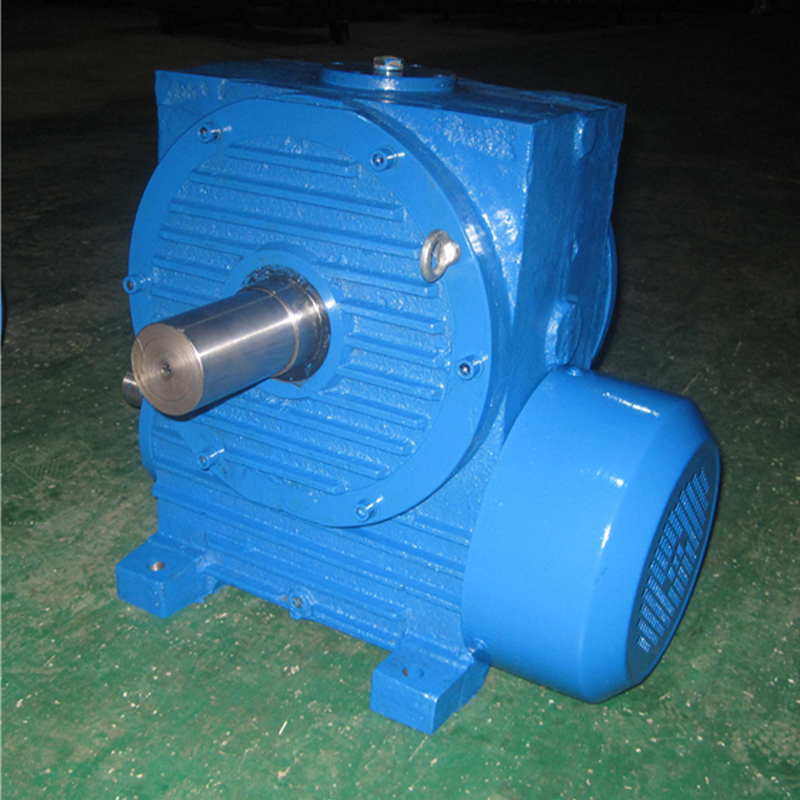

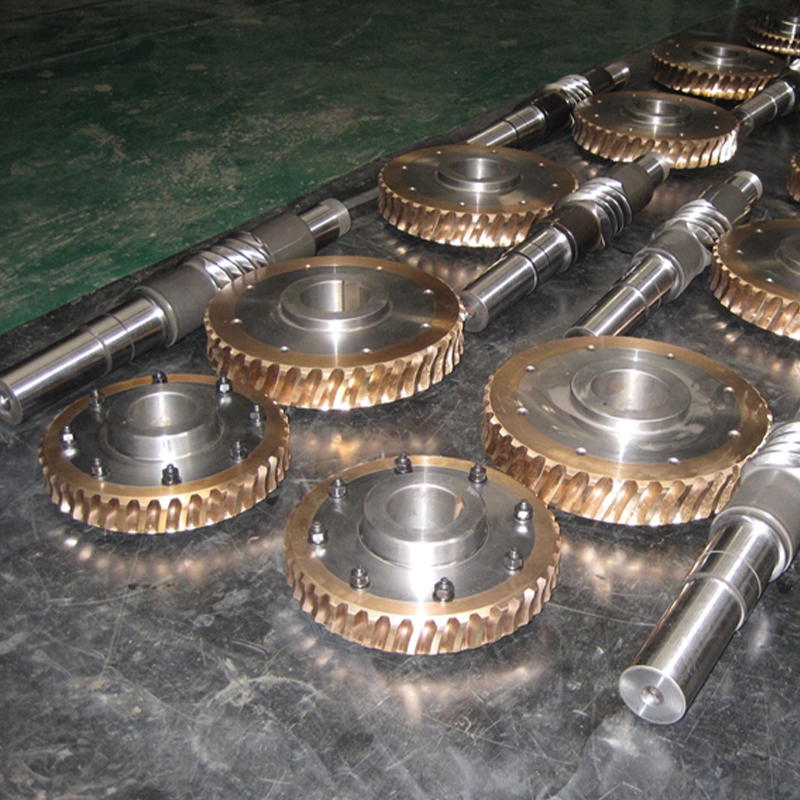

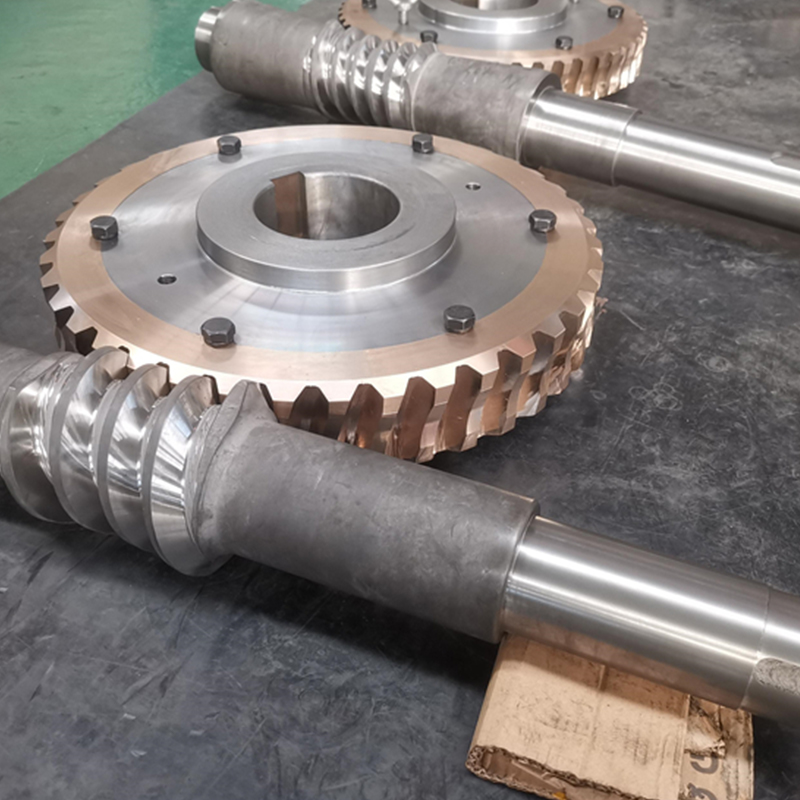

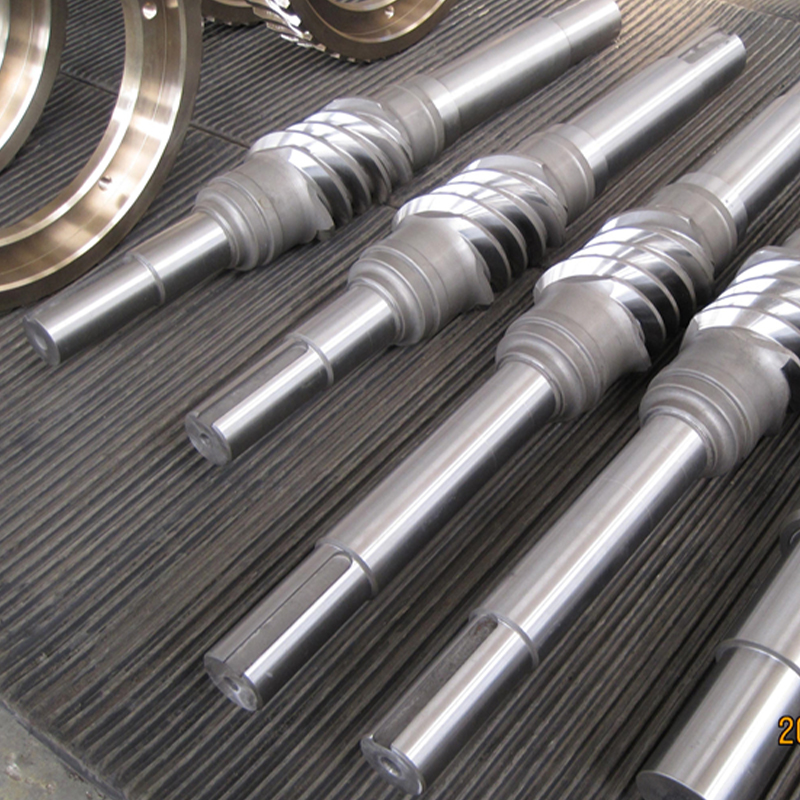

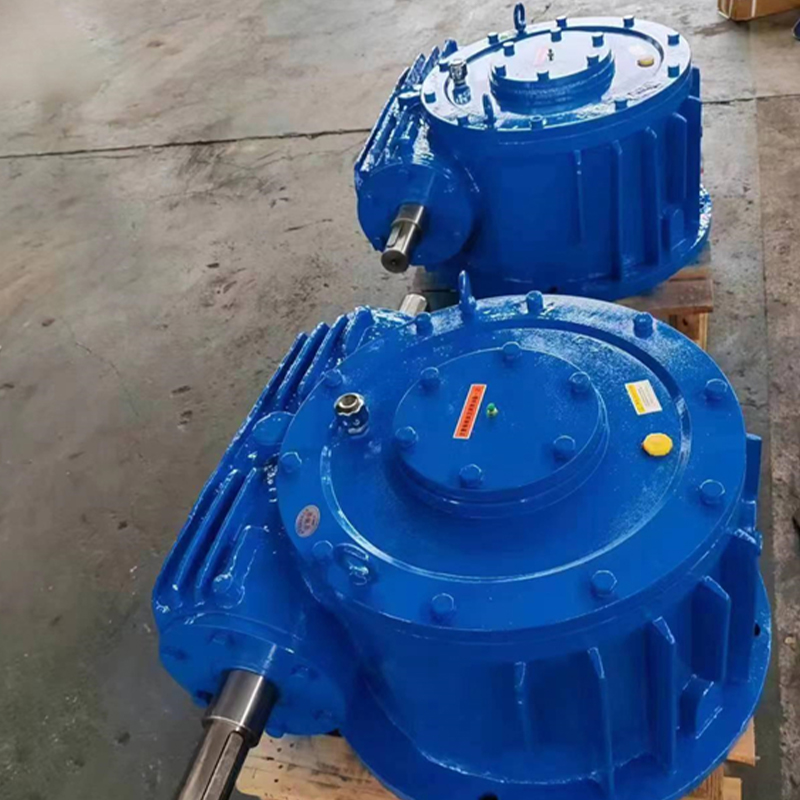

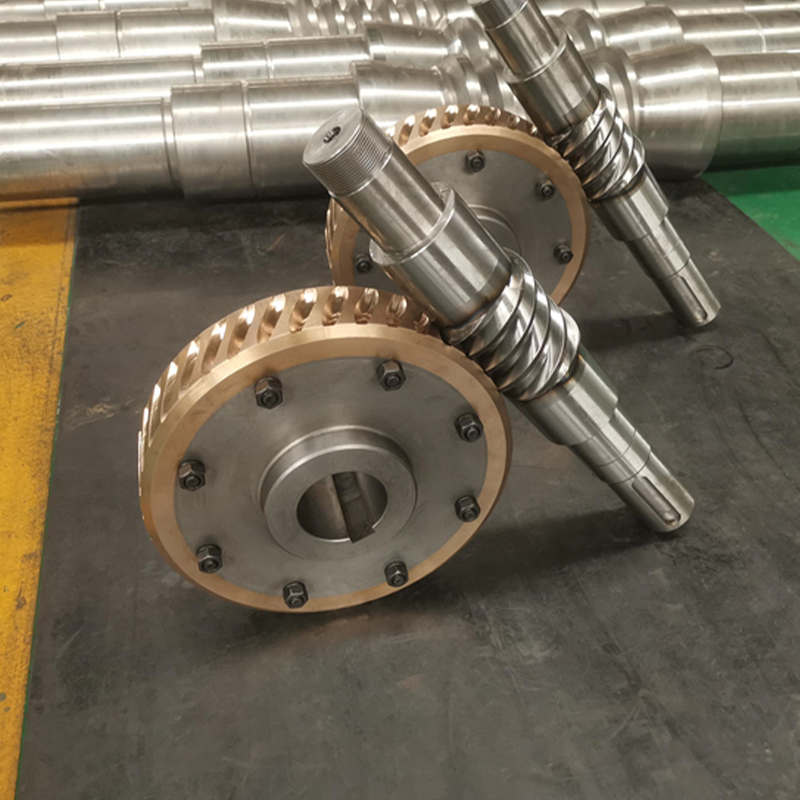

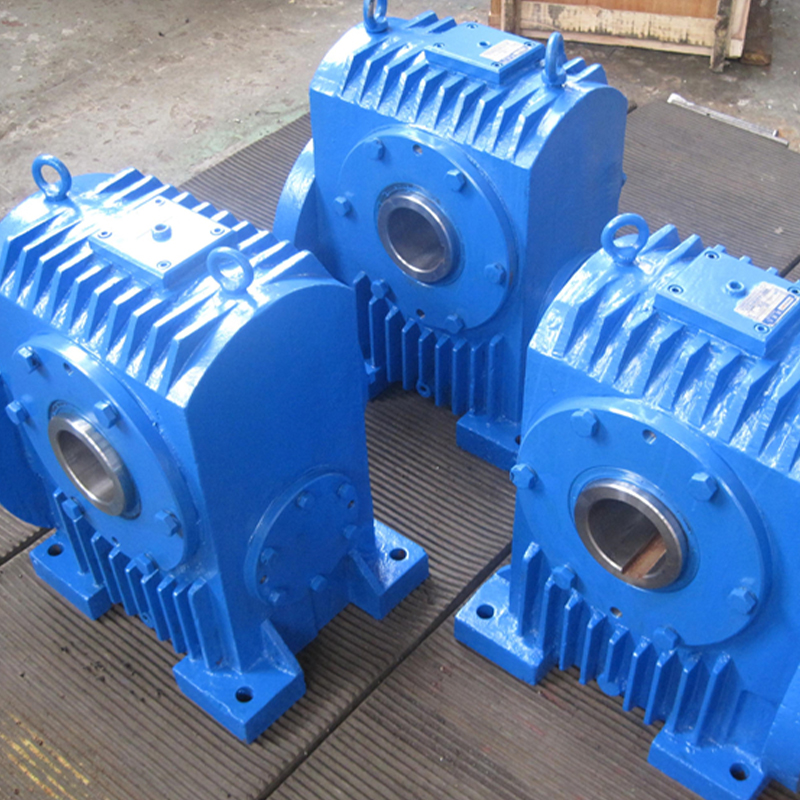

The Double-Enveloping Worm Gear Reducer employs a unique double-enveloping transmission principle, with a significantly larger meshing area between the worm and worm wheel compared to conventional worm gear reducers. This special construction allows the product to transmit greater torque within a given volume, while also offering higher load-bearing capacity and longer service life. The worm gear profile and worm wheel tooth grooves of the Double-Enveloping Worm Gear Reducer mesh simultaneously at multiple contact points, creating an optimized load distribution pattern and effectively reducing tooth surface contact stress. Its smooth transmission performance is particularly suitable for industrial applications requiring precise position control and low-speed, heavy-load operation. This design also provides better heat dissipation and wear uniformity, maintaining reliable operation even in harsh environments with high dust and humidity.
Inquiry
Product Description
Detailed Performance Characteristics
Increased Load Capacity: The tooth surface contact area is increased by more than 30% compared to ordinary worm gear reducers, reducing the load per unit area and allowing for greater impact loads.
Optimized Transmission Accuracy: Simultaneous meshing of multiple teeth effectively reduces transmission backlash, with backlash controllable within 10 arc minutes.
Extended Service Life: Uniform wear distribution and optimized lubrication film formation result in a product lifespan 1.5-2 times that of ordinary worm gear reducers.
Installation Adaptability: The drum-shaped tooth design provides better tolerance for axis alignment errors, reducing installation accuracy requirements.
Construction Cases
