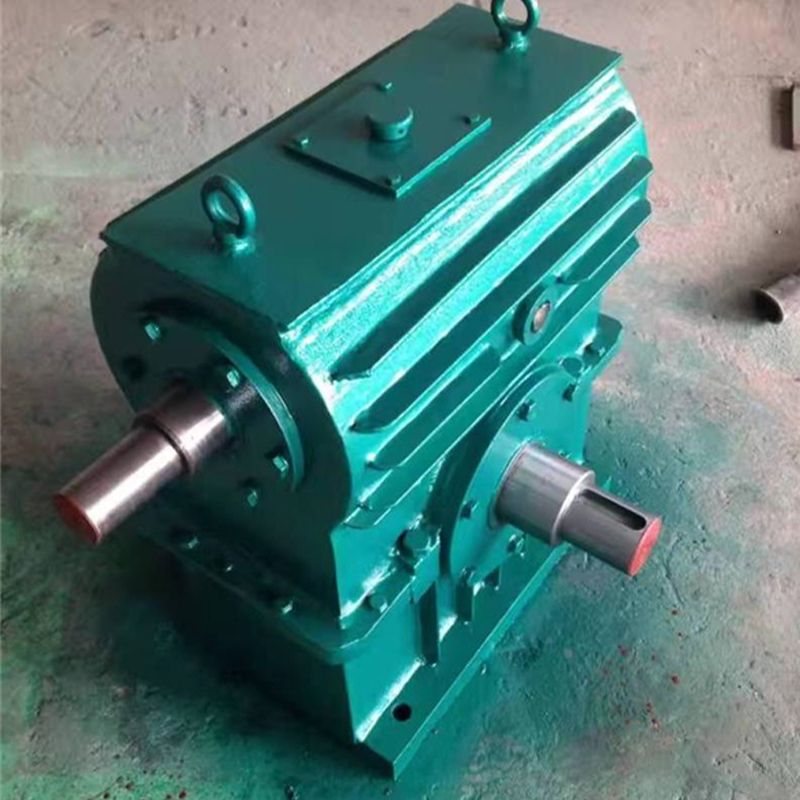

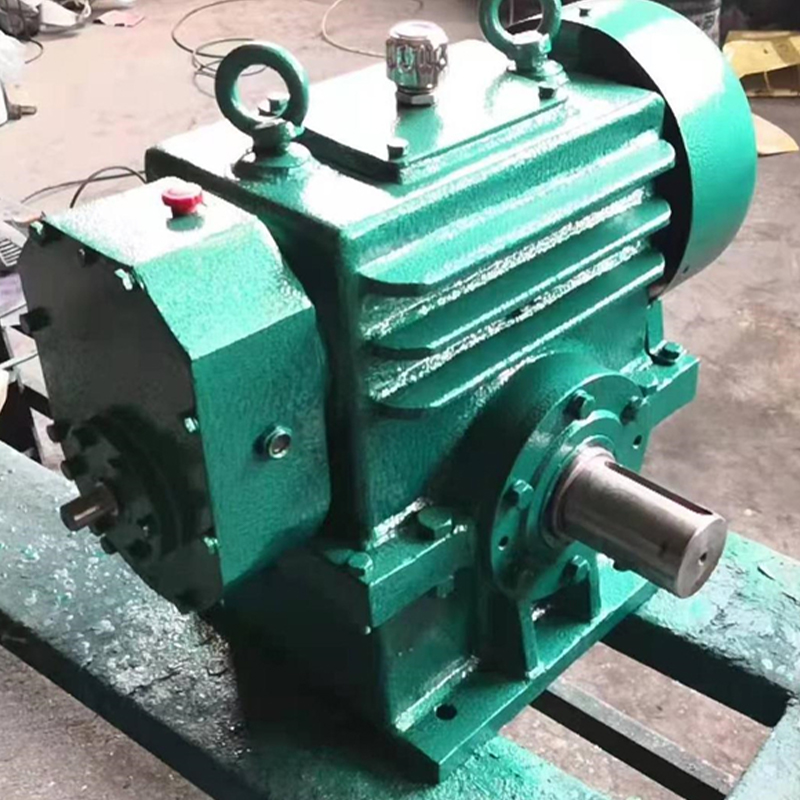

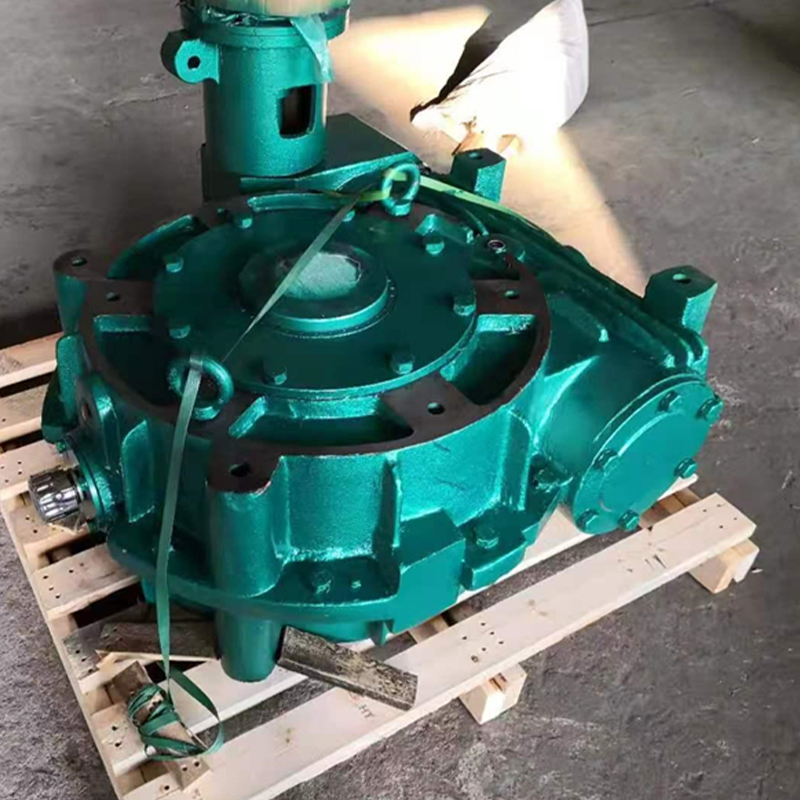

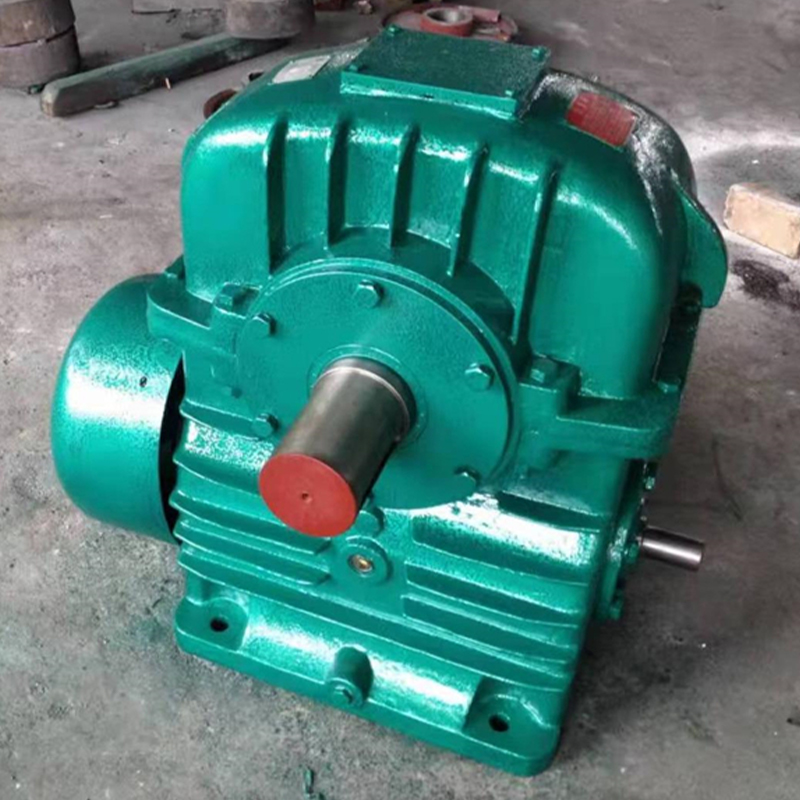

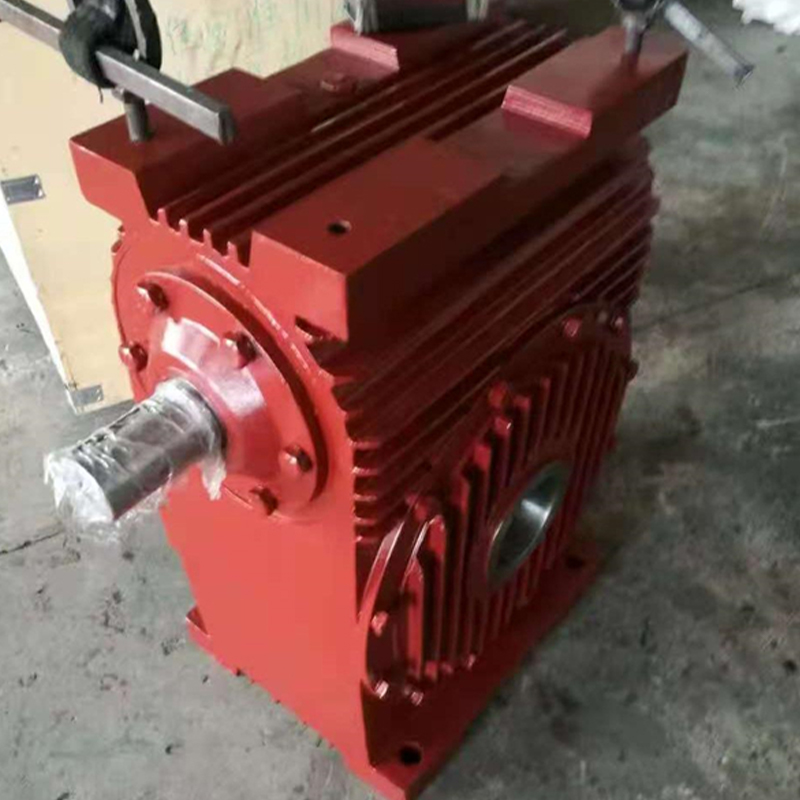

The Single-Enveloping Worm Gear Reducer employs a unique meshing configuration where the worm gear teeth surround the worm, significantly increasing the contact area between the worm gear teeth and the worm. Compared to conventional cylindrical worm gear reducers, this structure effectively improves tooth contact conditions, enhancing load-bearing capacity and transmission efficiency. By optimizing the worm gear tooth profile, the Single-Enveloping Worm Gear Reducer achieves a more uniform load distribution and a smoother transmission process. Its unique meshing characteristics enable excellent performance in small to medium power transmission systems, particularly in applications requiring large transmission ratios and compact installation space. This reducer operates smoothly with low noise and features a self-locking function, providing a reliable transmission solution for various industrial equipment.
Inquiry
Product Description
Performance Parameters
Transmission efficiency range: 70%-90%, superior to ordinary cylindrical worm gear drives
Single-stage transmission ratio can reach 5:1 to 70:1
The load capacity is 15%-25% higher than ordinary worm gear drives of the same size
Noise level controlled below 65 decibels
Construction Cases
